Z Shape Bucket Elevator
Introduction
Z shape bucket elevator for seeds & grains are divided into three types in terms of conveying direction and needs: L type,C type and Z type.Here we introduce the z type bucket elevator . Sometimes we also called it by chain bucket elevator.
|
L type |
Z type |
|
|
|
The z type bucket elevator is applied in transporting loose materials such as fine powder , small particles or pellets in a closed box. This bucket elevator conveyor consists of a machine head, an upper horizontal section, an upper curved section, a vertical section, a lower curved section, a lower horizontal section, and a tail section. It is a continuous three-dimensional conveying method that combines vertical and horizontal transportation. Z type bucket elevator is widely applied in industries such as metallurgy, chemical,medicine and battery production lines.
It supports vertical long distance transporting.

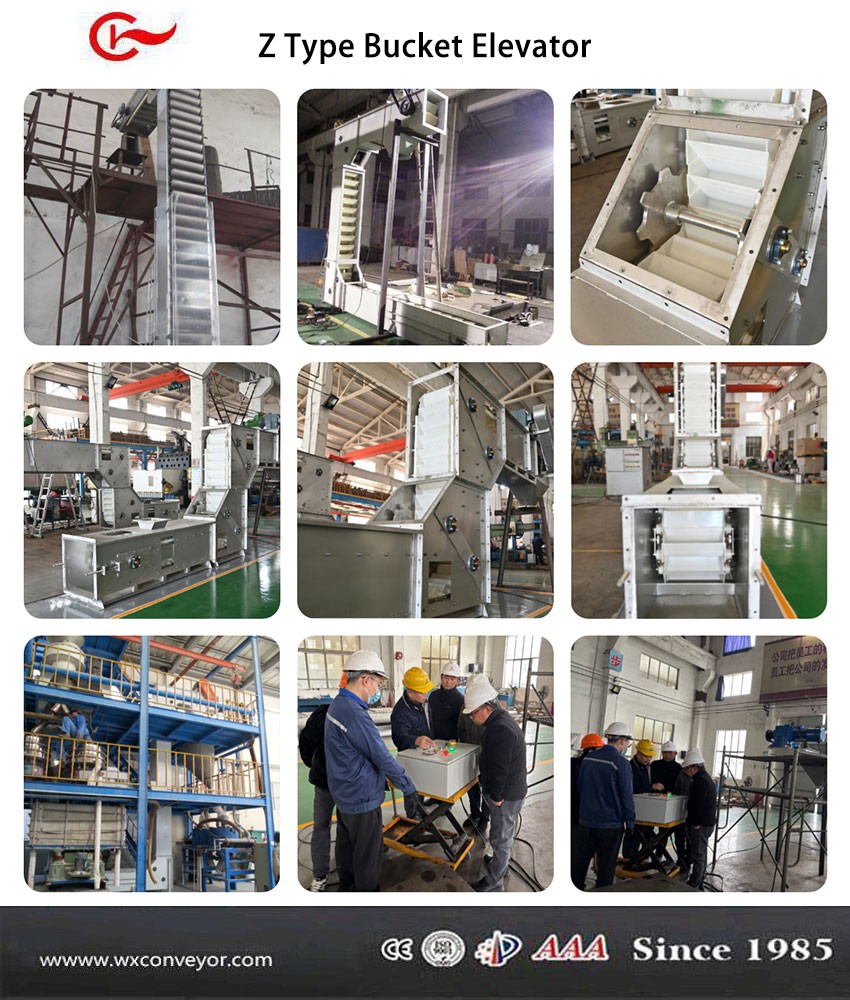

In the workshop ,the height is only 10m. We can not assemble all vertical section due to the height limitations.Thus ,there is only a short vertical section for empty running test at the workshop.
Size chart on z type bucket elevator
|
Component's name |
Size |
Materials |
|
Bucket size |
370mm |
|
|
Bucket pitch |
160mm |
|
|
Z type bucket elevator's conveying length |
13100mm |
|
|
Drive system |
2.2KW at 12 rpm |
|
|
Drive direction |
Drive is Domestic Drive, series"R", helical gear reducer, shaft mounted c/w 2.2 KW-electric motor 380v-3ph-50 Hz and an IP55 rating and located at the outlet end of elevator |
|
|
Z type bucket elevator's inclination |
900 |
|
|
Surface treatment |
Acid clean |
|
|
Net weight |
1800kgs |
|
|
Packing size |
TBD |
|
|
Packing type |
By plywood case ( export standard) |
|
|
Gross weight |
2000kgs |
|
|
Manufacturing time |
30 days to 45 days after down payment |
|
|
Payment term |
30% prepaid by T/T,70% shall be balanced before delivery |
Can be negotiated. |
|
Warranty period |
12 months after start up on site or 18 months after delivery ,whichever occurs first . |
|
|
Site service |
We can send technician to site if necessary |
All sections will be assembled together on job site by the buyer according to the seller's installation manual book.Z type bucket elevator's bucket is made of nylon, the shell is made of stainless steel 304 or 316L.
Components
(1) motor &gearbox.There exist Chinese and Germany motor &gearbox.
(2) Bearing.There exist Chinese and SKF,NSK bearings.
(3) Bucket.Bucket are made of plastic.It can endure temperature by 800C.
(4) Sprocket
(5) Clearance window/inspection window
Features
Widely materials can be chosen: Mild steel painted construction ,stainless steel ,Titanium
Easy to install: Changrong will give a specific manual book about installation.
Hinged inspection door with quick clamp : easy for workers to clean
Price
We are the manufacturing factory with engineering team .So we can provide the design to you ,and also we can make equipment to you .You can get the factory price directly.
How to get a competitive price ?
Send us :
1. transported medium's name,is it powder,particle and granules,its bulk density,good flow or bad flow
2.transport capacity
3.working continuous or discontinuous
4.transport length ( lower section + vertical part + top section)
5.voltage at your location.in China,it is 380V,50HZ,3PH.
FAQ :
(1) What is warranty period: 12 months after start-up on site or 18 months after delivery ,whichever occurs first.
(2) What is delivery time: depends on the quantity of equipment.Usually it takes 5 weeks for 1 set of bucket elevator to make.
(3) What is certificate do you have :We have ISO9001,ISO18000,ISO14000,CE
