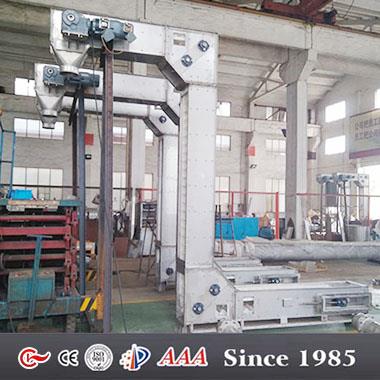

Wuxi Changrong design and manufacture z type z type bucket elevators to optimize transportation of loose products of different consistencies (bulk products: granular, powder,etc), ensuring that they will arrive in perfect condition.Wuxi Changrong ‘s Z type z type bucket elevators-conveyors are...
Wuxi Changrong design and manufacture z type z type bucket elevators to optimize transportation of loose products of different consistencies (bulk products: granular, powder,etc), ensuring that they will arrive in perfect condition.Wuxi Changrong ‘s Z type
z type bucket elevators-conveyors are made up of three sectional parts :
Usually bucket is made of stainless steel ,carbon steel ,nylon and other special materials . Z type z type bucket elevator uses a special mechanism that can be used to move bulk material in vertical manner.
With the valuable assistance of skilled team of professionals, we are engaged in offering an extensive range of high-quality Vertical z type bucket elevator.
Chain elevator details
Stainless Steel 304 or Galvanized steel
Minimum Order Quantity
Technical Data on Vertical Chain Z type bucket elevator
Zero Speed Sensor
Usually there will be a rotary valve or three way valve at the inlet and outlet
All vertical z type bucket elevator conveyors are equipped with one or more loading / discharge stations, they provide horizontal, vertical and diagonal transportation.
Because of z type bucket elevator conveyors’ special modular configuration, these elevators-conveyors can even be used in confined spaces, guaranteeing the transportation of large volumes/capacities in all situations.
Buckets are filled with the product while they are moving and then emptied by means of electro-pneumatic motor or other fixed systems .
The elevator is driven by a gear motor immersed in oil ,with torque limiting device connecting directly by means of a joint to the drive shaft located in the horizontal top part .Motor is with back stop device ,its aims to prevent materials from dropping down during stop the machine .
Feeding Inlets : depending on requirements.China Wuxi Changrong’s z type bucket elevators-conveyors are fitted with one or more loading inlets .The product must be fed proportionately and evenly .
Discharging Outlets :ChinaWuxi Changrong’s z type bucket elevators-conveyors are normally supplied with a single discharge outlet ( fixed discharge ) .As per request by customers ,several discharge outlets can be installed with buckets.The openings throughout which the product is discharged are usually fitted with a chute or flexible pipe connecting them to silos ,packaging machine or other conveying systems .
Structural Features Optional
(1) Galvanized, nickel-plated or stainless steel chains
(2) Equipped with manual or automatic bucket washing/drying systems
(3) AISI 304 or 316 stainless steel and or teflon-coated buckets or nylon buckets
(4) High-tech polimer buckets (ABS)
(5) Stainless steel wire mesh buckets
Advantages of our z type bucket elevators
· High load capacity
· Safety and reliability
· Application flexibility
· Easy to install
· Easy to clean
· Low maintenance
· Reduced engaged spaces
Types of z type bucket elevator
z type bucket elevator with nylon is used to transport or lift the light load materials ,low speed rate and light density .
z type bucket elevator with chain is used to transport or lift the heavy load materials ,fast speed rate and heavy density.
How to send us a correct inquiry
(1) Lift height = ?m
(2) Low horizontal section = ? m
(3) Top horizontal section = ?m
(4) Transport capacity= ?T/H
(5) Bulk density of transported materials = ? kg/m3
(6) Stainless steel or carbon steel
(7) Bucket is nylon or stainless steel or carbon steel
(8) Work continuous or not
(9) Voltage at your location .inChina, it is 380V,50HZ,3PH
(10) Which seaport is near to you
(11) Quantity ,MOQ is 1 set
(12) Surface treatment on z type bucket elevator :
For stainless steel ,there are three ways :
A.acid clean; B.sand blasting; C.Polished from Ra 0.1um to 3.2um
For carbon steel ,there are one way : only painting .Painting color is as per request .
(1)Q: What brands of motor &gearboxes will be used by Wuxi Changrong ?
A: Brands on motor & gearboxes and bearings are chosen by customers .
Motor & gearbox brands : Chinese brand ,Germanybrand -SEW,Nord ,ATB,etc.Other brands are ABB,SIEMENS
Bearings :Chinese brand ,SKF,NSK,NTN,FAG
(2)Q: Can you provide maintain platform on vertical z type bucket elevator ?
A: Yes,we can make it as long as you need .
(3)Q: Are there any manual book about vertical z type bucket elevator ?
A: Yes,you can follow the manual book to install the z type bucket elevator .
(4)Q: Have you ever exported vertical z type bucket elevators to oversea’ market ?
A: Yes.We have exported toUSA,RUSSIA,Kazakhstan,etc.
Please feel free to send us your detailed requirements, you would be satisfied with our service.
