Incline Pipe Screw Feeding Conveyor
Wuxi Changrong Conveying Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of incline pipe screw feeding conveyor in China, also supports custom service. With abundant experience, we warmly welcome you to buy advanced incline pipe screw feeding conveyor at competitive price from our factory.
Introduction
Incline pipe screw feeding conveyor is used to transport PE powder from lower section to the top section . The incline angle is 42. Inlet is at the lower place, the discharing outlet is at the top .Inclined Pipe Type Screw Conveyor is made up of outer screw pipe ,inner hollow shaft with screw flights, motor &gearbox ,bearings ,support legs .
Its sealing is adopted gland packing ,made of teflon/PTFE.

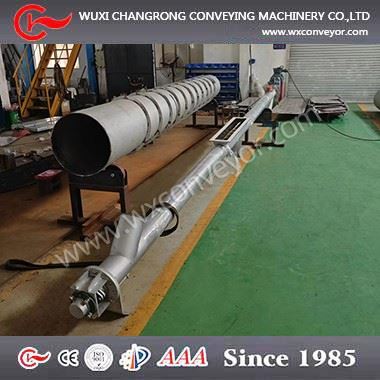

Photos as below :
Incline Pipe Screw Feeding Conveyor 's materials
All contacted PE powder's materials are made of SUS304 ,the rest is made of carbon steel by Q235 .
Inclined Pipe Screw Conveyor 's technical data
|
Component's name |
Incline Pipe Screw Feeding Conveyor |
|
|
Screw blade |
Ø146mm |
|
|
Screw blade pitch |
120mm |
|
|
Screw blade thickness |
4mm |
|
|
Screw center shaft |
Ø89*5mm |
|
|
Screw conveyor's length |
5900mm |
|
|
Drive system |
4KW at 80rpm |
|
|
Drive direction |
Drive is Domestic Drive, series "GFAF", helical gear reducer, shaft mounted c/w 4KW-electric motor 380v-3ph-50 Hz and an IP55 rating and located at the inlet end of conveyor |
|
|
Screw conveyor's inclination |
420 |
|
|
Surface treatment |
Internal polishing 250 mesh,external Sand blasting. |
|
|
Net weight |
423kgs |
|
|
Packing size |
6900*500*600mm |
|
|
Packing type |
By plywood case or steel frame or pallet ( or as per buyer's advice) |
|
|
Manufacturing time |
30 days to 45 days after down payment |
|
|
Payment term |
30% prepaid by T/T,70% shall be balanced before delivery |
Can be negotiated. |
|
Warranty period |
12 months after start up on site or 18 months after delivery ,whichever occurs first |
|
|
Site service |
We can send technicians to site if necessary |
Outline drawing of incline pipe screw feeding conveyor :
Incline Pipe Screw Feeding Conveyor 's Inspection request
All welding are 100% visually inspected during the fabrication stage .Wuxi Changrong can provide report by RT or PT test report if necessary.
How to get a correct customized design and quotation
Send us the following information :
Transporting length. L= ____m
Transporting inclination degree . = ____00 ( inclination is from 10 to 900)
Transporting capacity = ___m3/hour
Transporting is continuous or not
What is kind of materials to be transported ? powder,particle or something else. Provide the materials' bulk density,flow ability,moisture,etc
Screw conveyor is made of stainless steel or carbon steel
Voltage at your location .in China,it is 380V,50HZ,3PH
How to get chance to visit factory in China
Annabel Lin is responsible for foreign business in Wuxi Changrong Conveying Machinery Co., Ltd since 2011.With her efforts together with her team ,Wuxi Changrong has provided many equipment to Russia,USA,Japan,Czech,Lithuania,Zambia,Algeria,Malaysia,Singapore,etc.
