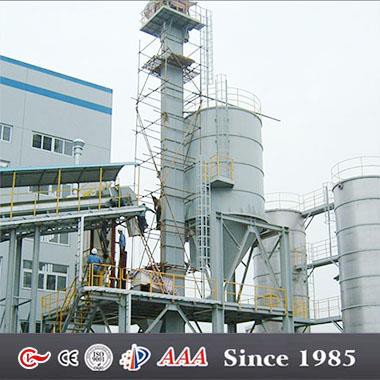

Ne Type Cement Chain Plate Bucket Elevator

Our company's products and the level of profit making tax are among the best in the industry and the conveyor drag chain, Feed Screw Conveyor for sale, Arch-breaker Machine are sold well all over the country and overseas. Trust us, you will never lose heart. Relying on its good reputation and high-quality services and products, our company has established our leading position in this industry and become a long-term and stable supplier of many excellent enterprises. The team spirit is the soul of an enterprise and an inexhaustible driving force for the sustainable development of an enterprise. A strong team of designers, sound management, and advanced testing equipment ensure our strong production and service capabilities.

Chain bucket elevator introduction

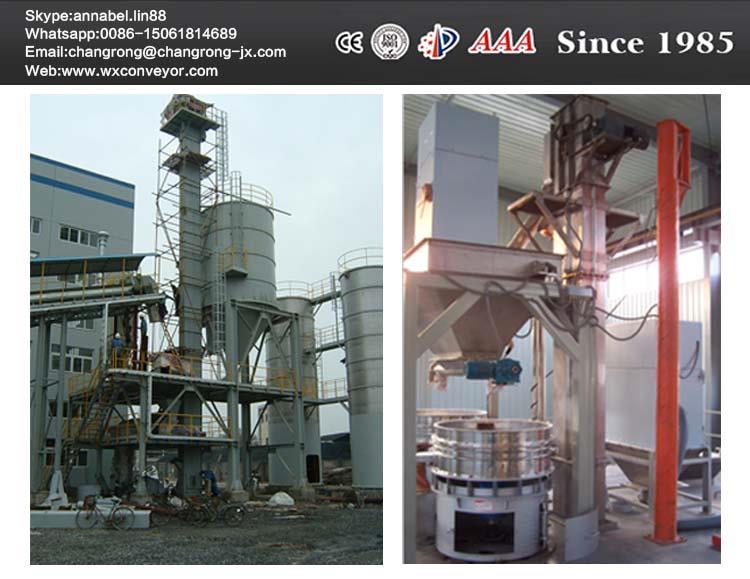

Bucket elevators (NE50) series is provided  by the manufacturer -Wuxi Changrong Conveying Machinery Company which established in 2001.Such vertical bucket elevator is designed for continuous transportation of bulk materials of volume weight 1100-1200kg/m³.Inclusively such as caustic soda in pearl ,fertilizer,gypsum powder,glass fiber,etc. Chain bucket elevators are used to lift products from initial up to end point without intermediate loading and unloading .

Wuxi Changrong Vertical chain bucket elevator consists of conveying device with fixed buckets driving and loading devices,loading and unloading boots with branch pipes and a casing .The reliable gear motor drives the vertical chain bucket elevator.The execution of elevator can be left installed or right-installed drive (installation from the side of loading branch pipe ). The designs of elevator provides a brake or stop device to prevent the spontaneous backward running of working part.

The steel housing with loading and unloading branch pipe plays role as a supporting part and protection against environmental attack on material .

The bulk material is loaded the bottom of the elevator ( loading boot end ) through loading branch and enters the buckets then ,it goes vertically and enters the tank or silo or hopper throughout unloading elevator branch throughout loading branch installed on the top ( unloading boot end ) due to centrifugal force created by drive pulley.The empty overturned buckets return to the low section ,after that the cycle repeats .

Technical Data

Competitive Advantage

(1) Simplicity and structural reliability

(2) Access hatch

(3) Lining of the bottom of loading boot that provides the friction decrease and power costs accordingly

(4) Application of reliable components of well known manufacturers :

--Motor : SEW,ABB,SIEMENS,NORD

--Bearing : SKF,NSK,NIN,FAG

(5) Competitive price

How to send us a correct inquiry

(1) Lift height

(2) Distance between inlet and outlet

(3) Transport capacity= ?T/H

(4) Bulk density of transported materials = ? kg/m3

(5) Work continuous or not

(6) Voltage at your location .in China, it is 380V,50HZ,3PH

(7) Which seaport is near to you

(8) Motor & gearbox ,bearing’s brand .

(9) Quantity ,MOQ is 1 set

(10) Stainless steel or carbon steel

(11) Surface treatment on conveyors :

For stainless steel ,there are three ways :

A.acid clean; B.sand blasting; C.Polished from Ra 0.1um to 3.2um

For carbon steel ,there are one way : only painting .Painting color is as per request .

Inspection before delivery

We will make test run video without material before delivery .

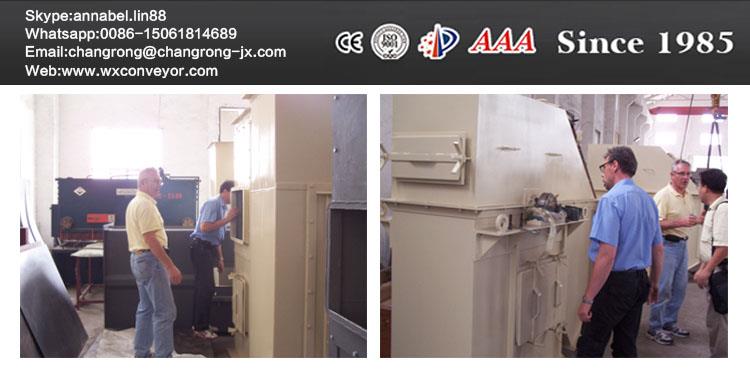

We also invite customers to make inspection at Changrong workshop .

Customer make inspection on chain bucket elevator .

FAQ

(1)Q: Are you trading company or manufacturer ?

A: We are a manufacturer with our own factory.

(2)Q: What is size of your factory?

A: 10,000M2

(3)Q: How many employees at your factory ?

A: 70 .including 8 engineers

(4)Q: What are certification do you have ?

A: CE,ISO9001-2008

(5)Q：Can I make our own logo on package?

A:Yes.

(6)Q:What is your service?

A: Provide free design + free consult + excellent manufacturing + reliable warranty period + reach job site for solving problems if necessary

(7)Q: What is payment?

A: It can be negotiated .Usually we take T/T or L/C at sight .

(8)Q:Can I get a good price with reliable quality ?

A:Yes ,you can .Wuxi Changrong will give direct economical price to customers and ensure the best quality for each conveyors .

Please feel free to send us your detailed requirements, you would be satisfied with our service.

Contact Below:

WUXI CHANGRONG CONVEYING MACHINERY CO., LTD.
Add：Jiang Industrial Zone, Qianzhou Town, Huishan District,Wuxi Jiangsu Province
Tel：+86-510-83380342
Fax：+86-510-83381591
Email: changrong@changrong-jx.com
Web：http://www.wxconveyor.com

If you're looking for chain bucket elevator equipments, CHANGRONG CONVEYING MACHINERY must be your best choice. Welcome you to visit our company for discussing business .

Our company has a managerial team with unity, high efficiency and strong implementation power. With the tenet 'honest, being professional, quality, high efficiency', we provide customers with perfect solution of Ne Type Cement Chain Plate Bucket Elevator. Warmly welcome to visit our factory. Our company has complete production and processing equipment, which can be equipped with the best quality and best service according to different product requirements, so as to realize the seamless connection between the company's operation center and customers and the implementation of rapid response. Through the implementation of the system, we strive to realize the independent operation and self-management of employees under the unified corporate goals.
