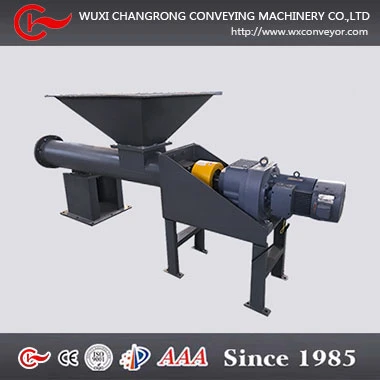

Auto Pellet Powder Vertical Small Screw Feeder with Support introduction

Vertical screw feeder’s speed is much higher than common screw feeders.The fed materials get friction between casing by the centrifugal force.The friction can prevent materials  from screw blade rotation and overcome the dropping gravity on materials,so as to reach the vertical transporting .Such a vertical screw feeder has small capacity,small conveying height, with higher speed but low consumption.Especially suitable for powder materials which is good flow.Vertical screw feeder is mainly used to hoist materials,Usually the hoist height is less than 8 meters.

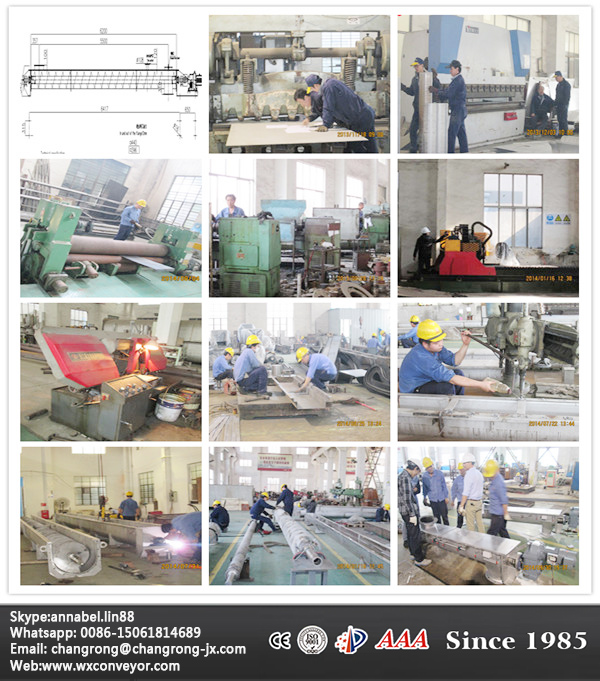

Outline Drawing


Function

Transporting ,feeding ,cooling ,heating ,insulation ,etc.

Vertical screw feeder Technical Data Form

Screw Diameter

250 mm

Screw Outer Diameter

273*6

Screw Shape

O Shape

Screw Inner Diameter

133*5

Vertical Speed

200 rpm

Horizontal Speed

44 rpm

Vertical Motor Power

5.5 kw,frequency type

Horizontal Motor power

3kw,frequency type

Capacity

10m3/h



Transport Vertical Length

9677mm

Transport Horizontal Length

2140 mm
