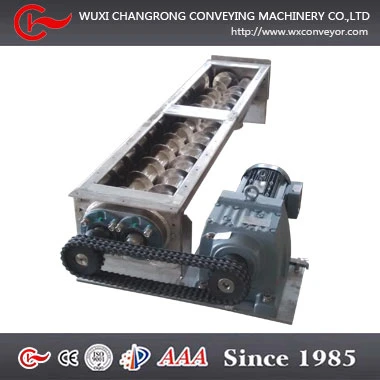

Horizontal Screw Feeder with Hopper introduction Wuxi Changrong specilizd in Horizontal screw feeders for 30 years, Export to many famous companies, Such as Rockwool in Denmark, Saint-Gobain Group, Lanxess Shanghai ,BASF Shanghai ,BASF Nanjing ,Degussa ,Ingevity performance Material Zhuhai...

Description

Horizontal Screw Feeder with Hopper introduction

Wuxi Changrong specilizd in Horizontal screw feeders for 30 years, Export to many famous companies, Such as Rockwool in Denmark, Saint-Gobain Group, Lanxess Shanghai ,BASF Shanghai ,BASF Nanjing ,Degussa ,Ingevity performance Material Zhuhai Company ,Invista Shanghai ,Dupont , Owenscorning, Mitsubishi Heavy , Japan SUMITOMO,Japan Kurita , etc. In China, North Sichuan Nitrocellulose Co., Ltd, Angel Yeast ,Sinopec, GEM Co., Ltd, Zhejiang Jiahua Group ,Huayou Cobalt, Haitian-Food, LEO KING ENVIRO.GROUP,ZIKE ENVIRONMENT, etc. Meanwhile, Wuxi Changrong export conveying equipments to Russia,Finland, Denmark, Singapore,New Zeland, Australia and other countries.

Horizontal U shape auger screw conveyor feeder Specification

  • Condition: New

  • Type: Screw Conveyor

  • Material: Stainless Steel

  • Material Feature: Oil Resistant

  • Structure: Chain Conveyor

  • Load Capacity: 1-20 M3/H

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: Chang Rong (CR)

  • Model Number: CR-414

  • Voltage: 380V,as per needs

  • Power(W): 3kw as per needs

  • Dimension(L*W*H): will be masured before delivery

  • Certification: CE,ISO9001-2008

  • After-sales Service Provided: Overseas service center available

  • incline angle: 0 degree-90degree

  • bearing: FYC60TF ,SKF brand or other brands

  • motor power: 1.5 kw ,IP55--Chinese brand

  • gearbox type: GR67-- Chinese brand

  • screw flight thickness: 6mm as per needs

  • shaft size: 89 mm

  • sealing: PTFE

  • function: mixing & feeding

  • hopper capacity: 1m3 as per needs

  • packing: plywood case

Horizontal U shape auger screw conveyor feeder Specification

Specification Screw conveyor's Housing

Construction Materias

AISI316L

Shape

O Shape

Materials' casing thickness

3mm ,as per needs

Length

3000mm ,as per needs

Throughout

2.1 M3/hour

Shaft bearing

dust protected, outside

Screw Flight thickness

6mm as per needs

Temperature

78~140 centi degree

Screw Conveyor's Name Plate

This name plate will be put on the conveyors after passing inspection .



FAQ

(1)Q: Is it reliable if products are made in China?

A:We have a team engaged in professional design and manufacturing conveying equipment since 1985,providing conveyors for customers both at home and abroad .

(2) Q:Can I give dimensions to you ,then make conveyors as per my request ?

A:Yes,you can . Wuxi Changrong can design and make conveyors as per needs .And you can put your own logo on conveyors .

(3)Q: Can I get much longer warranty period ?

A:Yes,you can .usually the warranty period is 12 months for 1 set of conveyor. Any special request on warranty period can be discussed .

(4)Q: Can I get a good price with reliable quality ?

A:Yes ,you can .Wuxi Changrong will give direct economical price to customers and ensure the best quality for each conveyors.
