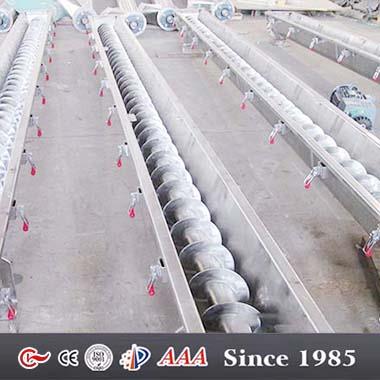

Food Grade Conveyor Screw Conveyor Systems

F ood conveyor introduction Wuxi Changrong Conveying Machinery Company design and make various large screw conveyor for food industry .Screw diameter ranges from 800mm to 1500 mm as per request .Such as sugar powder,coffee powder,milk powder,medicine particle and other small bulk size can be...

Description

Food conveyor introduction
 Wuxi  Changrong Conveying Machinery Company design and make various large screw  conveyor for food industry .Screw diameter ranges from 800mm to 1500 mm as per  request .Such as sugar powder,coffee powder,milk powder,medicine particle and  other small bulk size can be transported by screw conveyor or screw feeder.


For example
 (1) screw conveyor work with hoppers for feeding  material into mixers.
 Technical Data

Screw Diameter

160 mm

Hopper Volume

3 m3

Screw Pitch

120 -140mm





Speed

68 rpm





Motor Power

3kw,frequency type





Capacity

0.8m3/h





Transport Length

4261 mm





Transport Direction

Incline.Incline    degree is 60 .





(2)  Incline Screw Conveyor with Mixer directly





Technical  Data


     Screw Diameter

233 mm

Hopper Volume

1.5m3

Screw Pitch

168,180,200 (mm)





Speed

50 rpm





Motor Power

7.5 kw,frequency type





Capacity

5-8 m3/h





Transport Length

5100 mm





Transport Direction

Incline.Incline    degree is 35 .





Usage:
 LS  Series shafted screw feeder or shafted screw feeder is application in  continuous transporting for powder,granule,and small bulk materials.It is  widely used in engineering conveying system.
 Screw  feeder can be horizontal,incline and vertical transporting.




Advantages

  1. Keep good  sealing and save cost;

  2. Ideal for  materials with good flow feature

  3. Stainless  steel structure and with stand corrosive

  4. Environmental  equipment


How to send us a correct inquiry

  1. transport length and Silo/Hopper’s size

  2. Transport direction : horizontal,incline or  vertical

  3. Transport capacity= ?T/H

  4. Bulk density of transported materials = ?  kg/m3

  5. Work continuous or not

  6. Voltage at your location .in China, it is  380V,50HZ,3PH

  7. Which seaport is near to you

  8. Quantity ,MOQ is 1 set

  9. Stainless steel or carbon steel

  10. Surface treatment on conveyors :

For stainless steel  ,there are three ways :

A.acid clean; B.sand blasting; C.Polished  from Ra 0.1um to 3.2um

For carbon  steel ,there are one way : only painting .Painting color is as per request .


FAQ

(1) Q:How to reach your factory?
 A:  You  can take airplane to Shuofang International Airport;
 And  take train to Wuxi station ,Wuxi East station,Huishan station.
 (2) How far from Shanghai to your factory by high  speed train?

 A: about 1 hour.
 (3) How far from Shanghai airport to your factory by  taxi ?
 A: about 3-4 hours .
 (4) How many years for exporting experience ?
 A: Since 2001,we export conveyors to oversea’  market .
 (5) Do you have engineering team ?
 A: Yes,we have 8 engineers to make design .
 (6) Are your factory is private or state-owned  enterprise?
 A: Our company is private .
 (7) Are you a trading company or manufacturer ?
 A: We are a manufacturer with our own factory.
 (8) What is size of your factory ?
 A: 10,000M2
 (9)  Where is  your location?
 A: No.6 Luozhou road,Jiang Xiang Industrial  zone,Qianzhou town,Huishan district,Wuxi City,Jiangsu, 214181,China
 (10) Are there any 5-star-hotel near to your factory?
 A: Yes.There exist Ramada hotel near to us .It  takes about 20 minutes by car .If you choose Ramada hotel,we will pick you up  there.
 (11) How many employees at your factory ?

 A: 70 .including 8 engineers
 (12) What are certification do you have ?
 A: CE,ISO9001-2008
 (13) Can I make our own logo on package?
 A:Yes.
 (14) Can Provide documents on conveyors? And what are  those documents ?
 A: Yes.Documents refer to manual book,product  certification,inspection records,FAT report ,photos,etc






Please feel free to send us your detailed requirements,  you would be satisfied with our service.


Contact Below:
 WUXI CHANGRONG CONVEYING MACHINERY CO., LTD.
 Add:Jiang Industrial Zone, Qianzhou Town, Huishan District,
 Wuxi Jiangsu Province
 Tel:+86-510-83380342
 Fax:+86-510-83381591
 Email: changrong@changrong-jx.com

 Whatsapp: +86-15061814689
 Web:http://www.wxconveyor.com

If you're looking for food grade conveyor equipments, CHANGRONG  CONVEYING MACHINERY must be your best choice. Welcome to buy the best food  conveyor systems with us. We will offer you good service and fast delivery.
